Clark Outdoor Living — Premium Shade SystemsPremium Shade Systems

Measure through delivery

A custom screen sized to a patio opening, ready for everyday use.

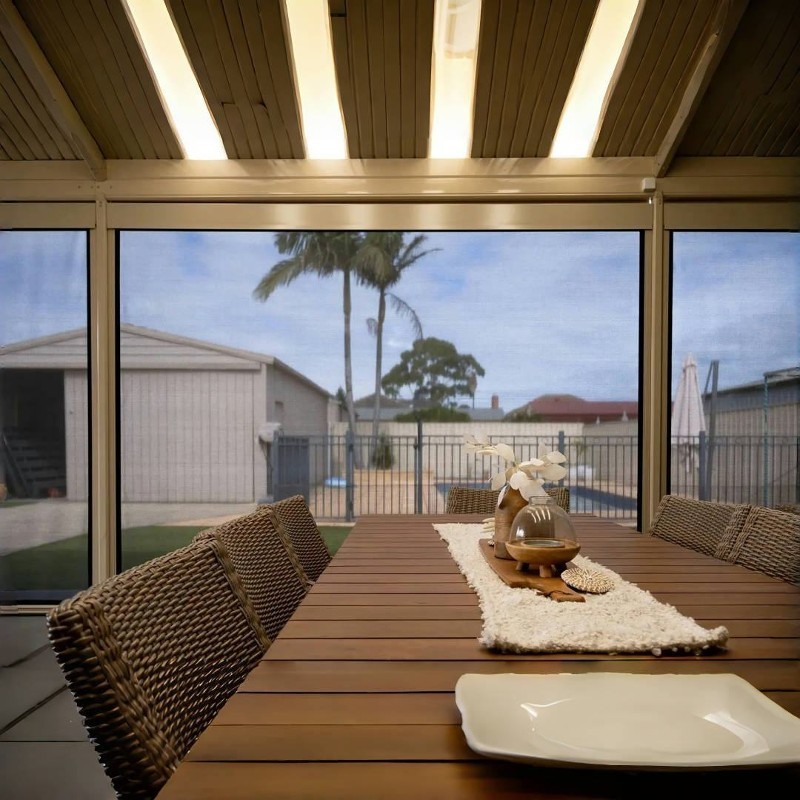

A screened outdoor dining room looking out to the yard.

  1. 01

    Measure

    Record width in three places and height on both sides for every opening.

  2. 02

    Configure

    Choose operation, finish, and fabric, then watch the price update.

  3. 03

    Review

    Confirm the package, delivery estimate, and measurement acknowledgment.

  4. 04

    Order

    Complete checkout or ask Clark to review first.

  5. 05

    Production

    After specification review, production typically takes five to seven days.

  6. 06

    Delivery

    Each screen is wrapped, foam-cushioned, and braced in its own carton, then strapped to a wooden pallet. Shipping is up to 45 days.

Measurement guide

Record each opening separately. Instant prices cover screens up to 19' 8" wide and 13' 1" high. Larger openings need a Clark review before production.

Width: top, middle, bottomHeight: left and rightRecessed: smallest width · Surface: largest widthHeight: always the smallest measurement

  1. Step 01

    Measure the width

    Measure the opening in three places: top, middle, and bottom. For a recessed or inside mount, use the smallest width so the screen fits inside the opening. For an outside surface mount, use the largest width so the housing and tracks cover the opening. Confirm the mounting surface is plumb and level.

  2. Step 02

    Measure the height

    Measure the height on the left and right sides, from the top header down to the floor or sill. Always use the smallest measurement so the finished screen will fit the opening.

  3. Step 03

    Note obstructions and power

    Motorized screens require a hardwired 120-volt supply — they are not plug-in. Mark where that power is available and which side the motor should sit on. Account for the housing and side tracks so they do not block doorways, lights, or other fixtures.

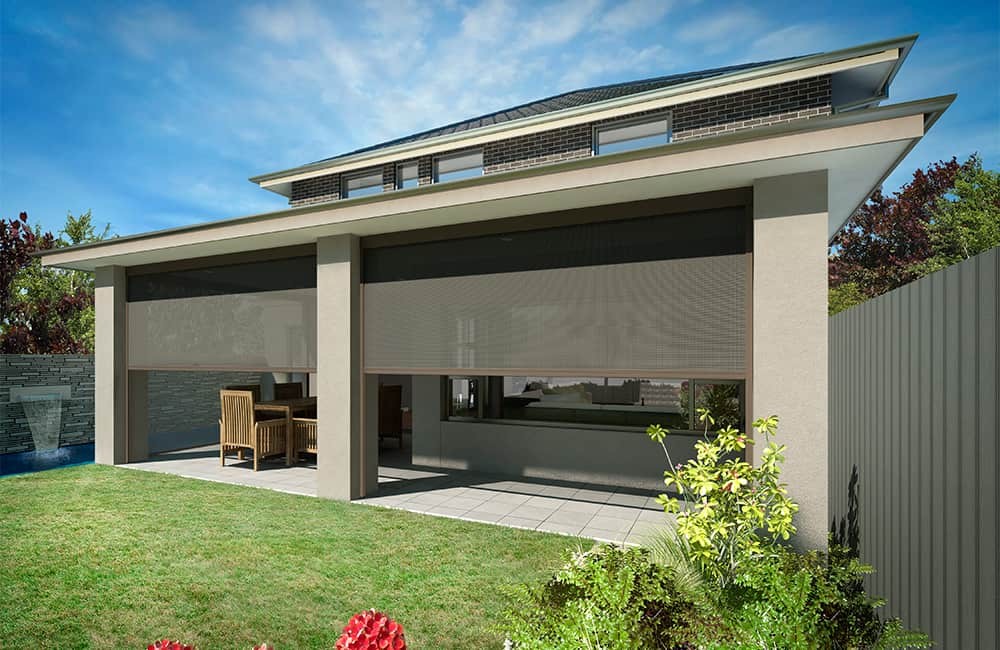

Recessed patio screens mounted between structural columns.
Recessed / inside mount: use the smallest width so the screen fits between the posts.

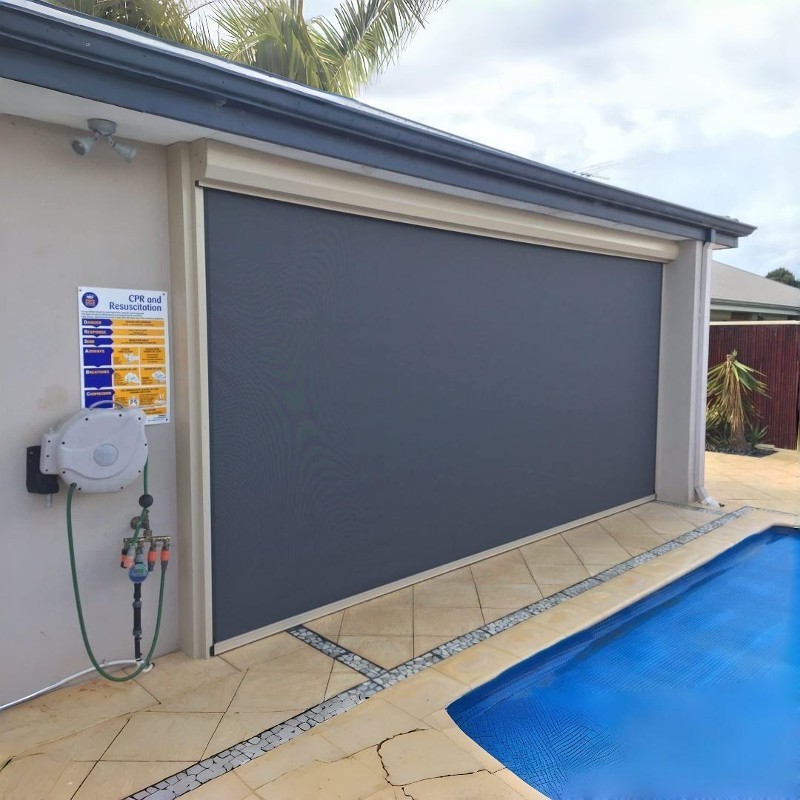

Outside surface-mount screen with housing and side tracks on a wall.
Outside / surface mount: use the largest width so the housing and tracks cover the opening.

How your order arrives

Each screen is wrapped, cushioned with packing foam, and braced with internal supports inside its own carton. Those cartons are then strapped and fastened to a wooden pallet — not shipped loose in a large wooden crate. Every shipment includes a minimum delivery charge; Build & Price shows the estimate before you order.

Custom screen cartons, wrapped and strapped to a wooden freight pallet.
Each screen is wrapped, foam-cushioned, and braced inside its carton, then strapped and fastened to a wooden pallet for door-to-door freight.
